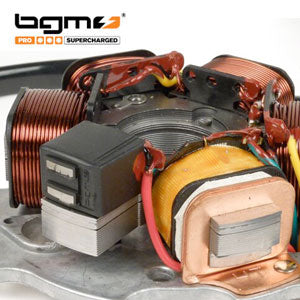

Lambretta BGM Stator AC or DC for Electronic Ignition BGM8040
Stator Plate BGM PRO Stator HP V4.0 DC for Lambretta Electronic Ignition
BGM8040
TIP: This DC ignition can also be used as AC ignition at any time. For this purpose, connect the red / yellow cable to earth. The yellow cable must then be connected as a live cable to a conventional voltage regulator.
The all-new version 4.0 BGM 12v electronic ignition DC stator plate. The ultimate Lambretta stator plate to give the most power to run the lighting system on DC systems using a capacitor or battery. To use this stator as a 12v DC you will need to use our new BGM DC Regulator / Rectifier or any single phase rectifiers (Wassell / Podtronics).
Stator plate wire connections:
Both Yellows connect to either Yellow on the rectifier
Black goes to ground
Red to Red on coil
White to White on coil
Green to Green on coil
- Improved power output for better lights
- Well proved low tension coil with copper for maximum reliability
- Pickup with a carbon barrier layer for a clean ignition signal
- BGM branded pickup
- Black and grey cable cover delivered on Lambretta stator plate
- Sufficient cable length for individual cable routing
- High quality light coils
- Clean solder joints

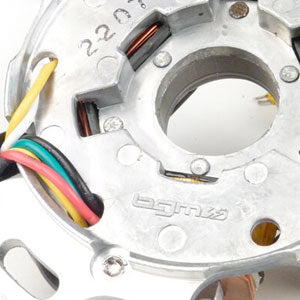

- Re tooled and reinforced base plate providing greater strength
- Enlarged slots for greater timing adjust ability
- Greater pickup height adjustment with provided 0.5mm shims

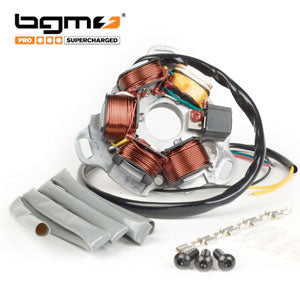

- Standard grey sleeve with optional black sleeve included
